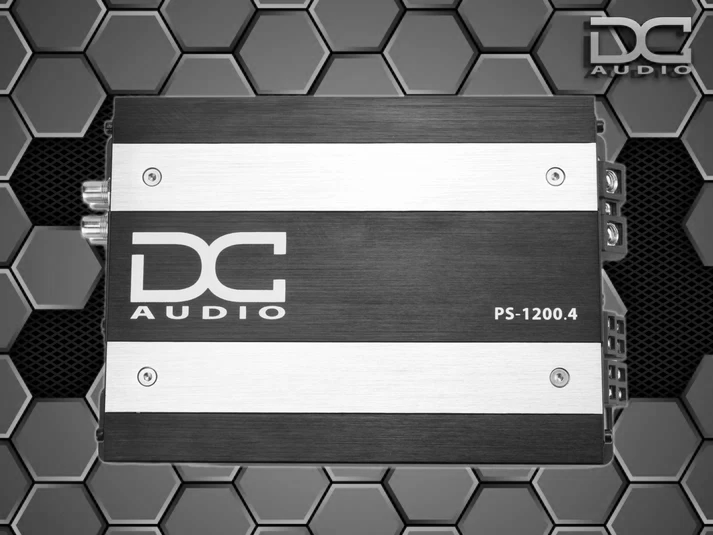

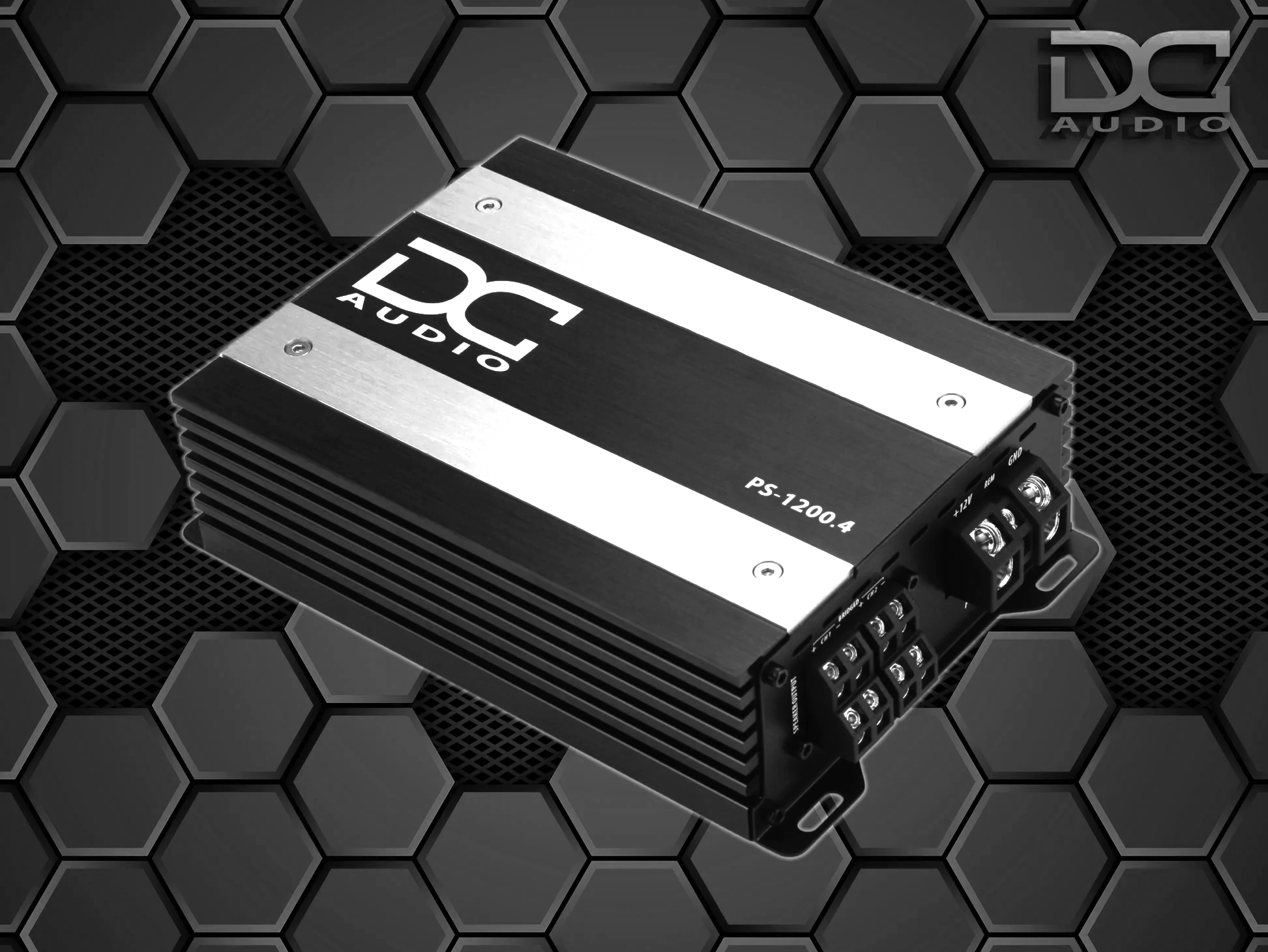

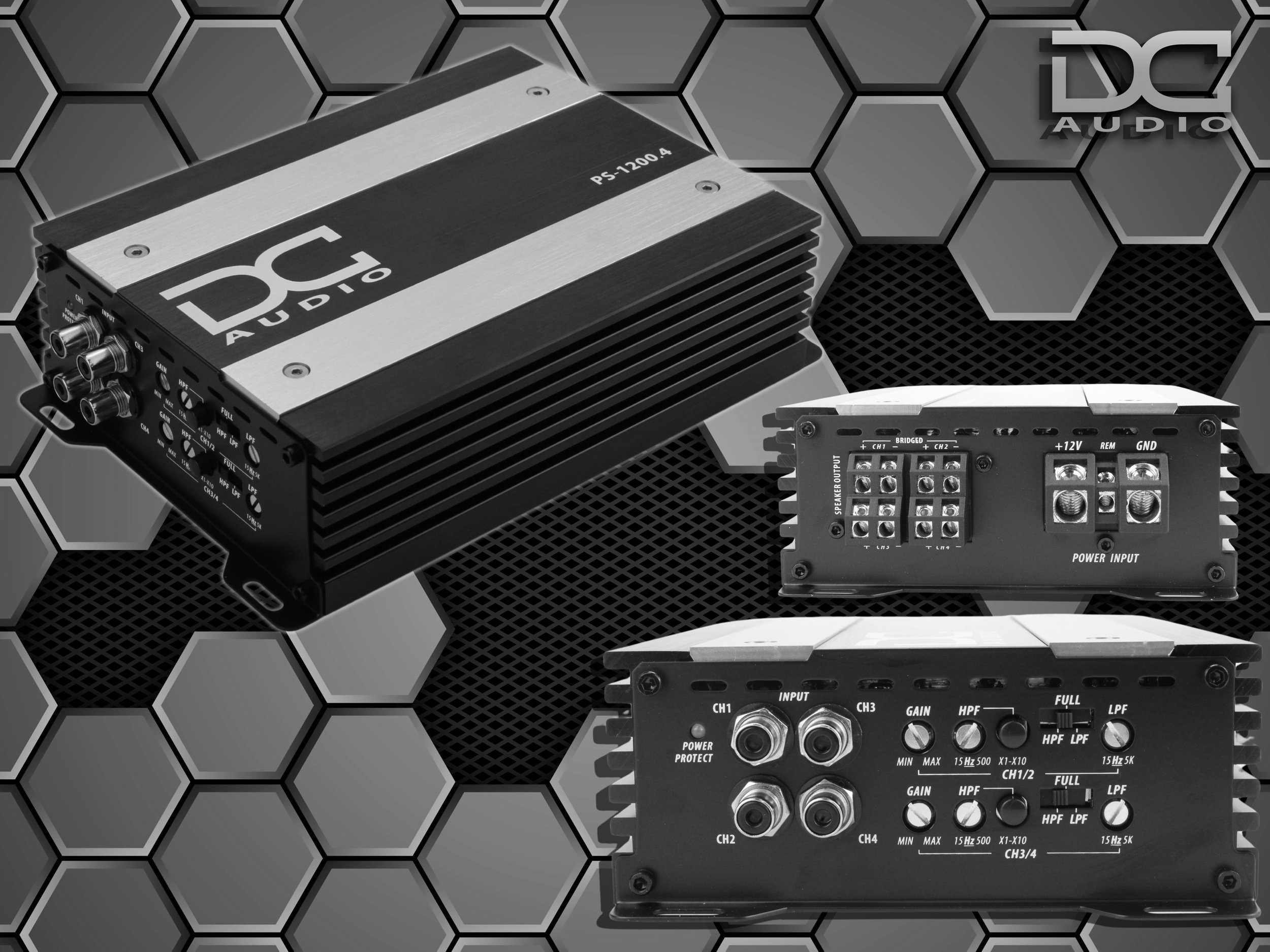

DC AUDIO Ps 1200.4

About the Product

Amplifier Description

The DC-PS1200x4 is a compact series full bridge amplifier capable of making 1,200 watts. It’s High power 4 Channel amplifier. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms

Output Power (RMS)

4 ohm 190Wx4 @ 14.4 Volts

2 ohm 300Wx4 @ 14.4 Volts

4ohm rms bridged power : 600W x 2

Key Features

4 ohm bridged stable

2 ohm stereo stable

Variable low pass filter

Variable High pass filter

Full Range Output

9-16.5 Volts Capable

x10 Crossover Switches

Tiffany Style RCA Jacks

Power / Protect LED

AMP SPECS:

input sensitivity) 4v-0.4v

Frequency Response 10 hz-20khz

12db/Octave Crossover) yes

high/ Low Pass 50 hz / 500hz

Sub sonic) NO

Bass Boost@ 45 Hz) NO

Phase Shift ) NO

Remote control) NO

Clip indicator) NO

Signal to noise ratio) 90 DB

Damping Factor) 90<

THD @ 4 ohms ) less then 1 percent

Fuse Rating ) External 100 amp

Led Status Lights) Power and Protect

Master/Slave) NO

Dimensions:

Heatsink Length 7.76 “

Heatsink Width 5.23 “

Heatsink Height 2.3”
